Netgate 8300 pfSense+ Security Gateway

Note: You can obtain a BASE version by selecting ‘Single power supply’ above. For a MAX version, select ‘Double power supply’.

Experience unrivalled value for money with the Netgate® 8300 Security Gateway powered by pfSense® Plus software. It was developed for medium to large companies, xSPs, MSPs/MSSPs with high connectivity and stability requirements. The device is enterprise-ready and features Netgate’s expandable chassis and hot-swappable power supplies, ensuring business-critical reliability and ease of maintenance.

This security gateway is equipped with a powerful Intel® Xeon® D-1733NT processor with 2.0 GHz, 8 cores and 16 threads with Intel AVX-512, which offers excellent firewall and VPN performance. The Netgate 8300 leverages the power of Intel AVX-512 to accelerate VPN operations, increase throughput and reduce overhead, while optimising core firewall functions to improve network security and performance. With four 10G SFP+ ports, four 1G SFP ports and three 2.5G RJ-45 ports, as well as the ability to expand to 25G and 100G ports via PCIe cards, the Netgate 8300 future-proofs your network infrastructure and scales easily with your business.

Technical data

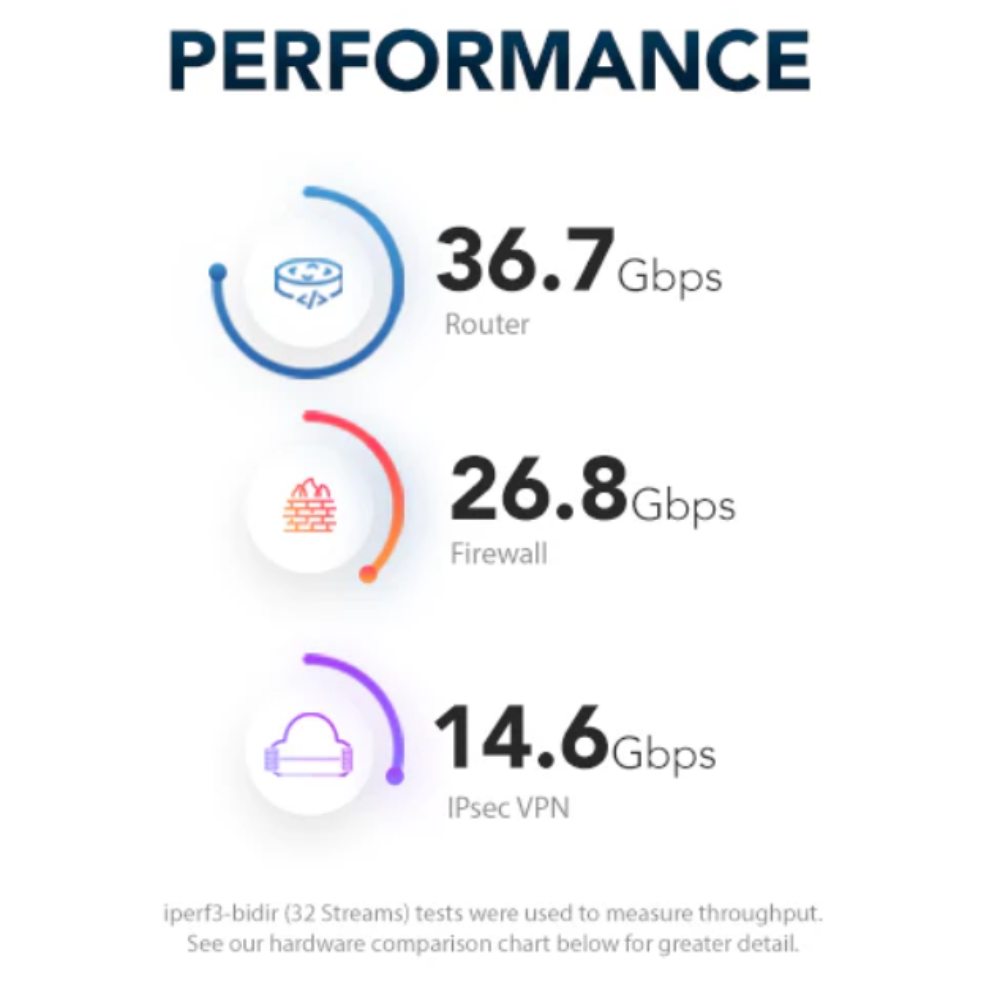

• CPU: Eight Core 2.0 GHz Intel Xeon CPU. Delivers 36 Gbps routing for everyday iPerf3-bidirectional traffic and over 26 Gbps of firewall throughput

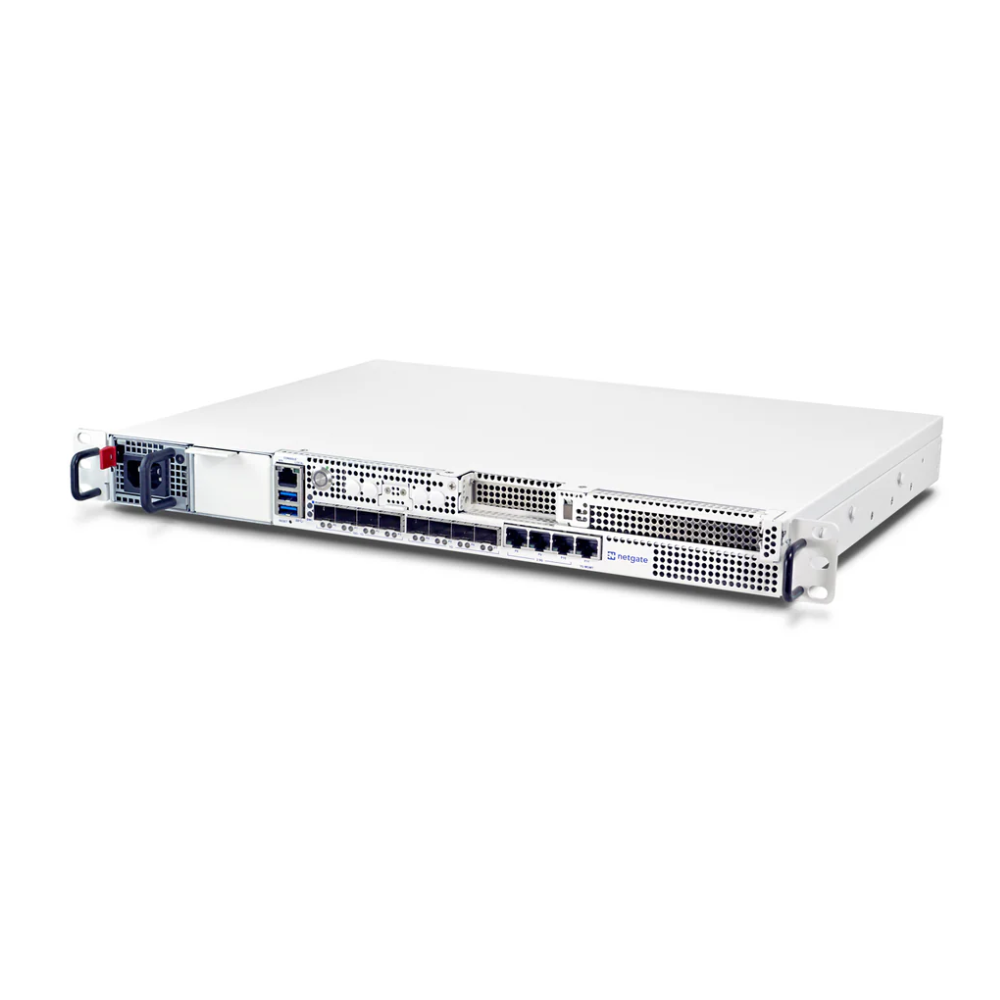

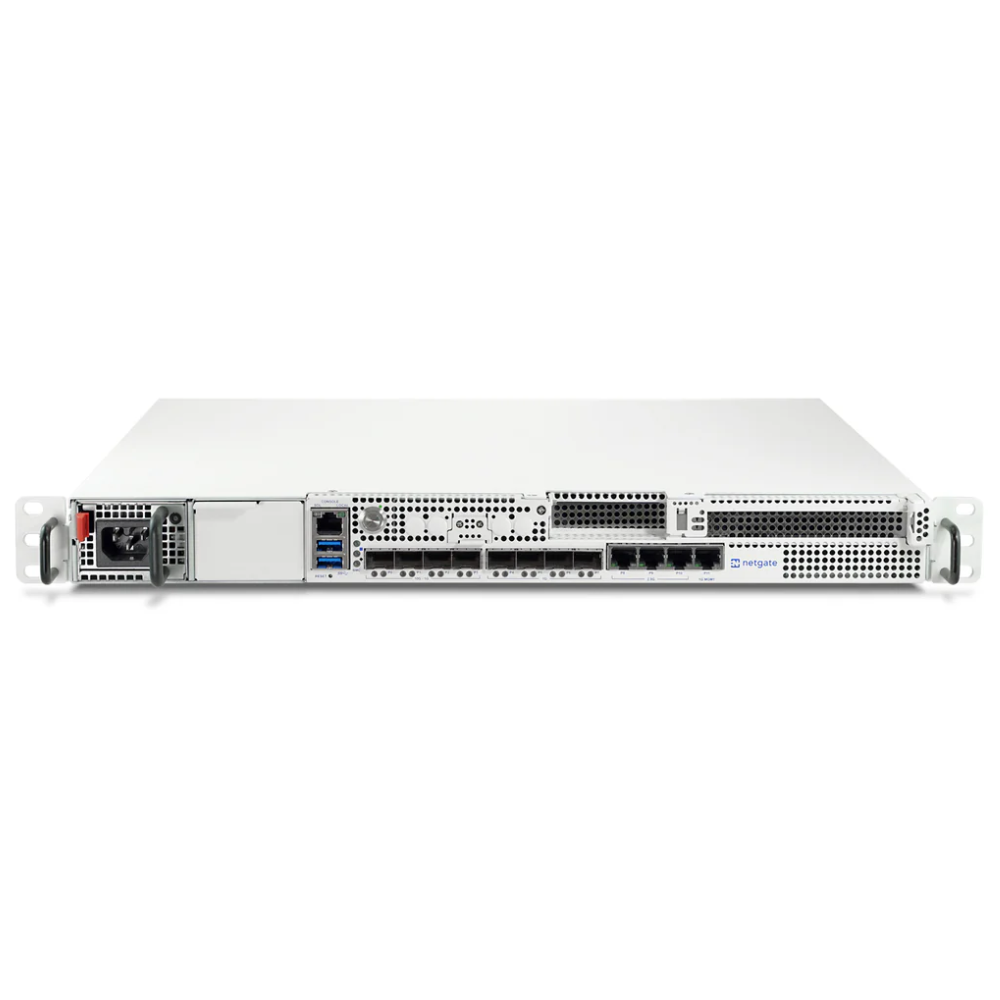

• Network Ports: 11 Independent 1G, 2.5G, and 10G ports. Maximum port flexibility – with 1G, 2.5G, and 10G Ethernet configurable as WAN or LAN across the combination of 11 RJ45 and SFP ports
• Expandability: 1 x PCIe 3.0 x8 port for half-length low profile cards and 1 xPCIe 4.0 x16 port for full-height three-quarters length cards
• Storage: 512 GB NVMe 2280 M-Key M.2 SSD
• Memory: 32 GB DDR4, ECC, 3200MHz via 2x 16 GB UDIMM

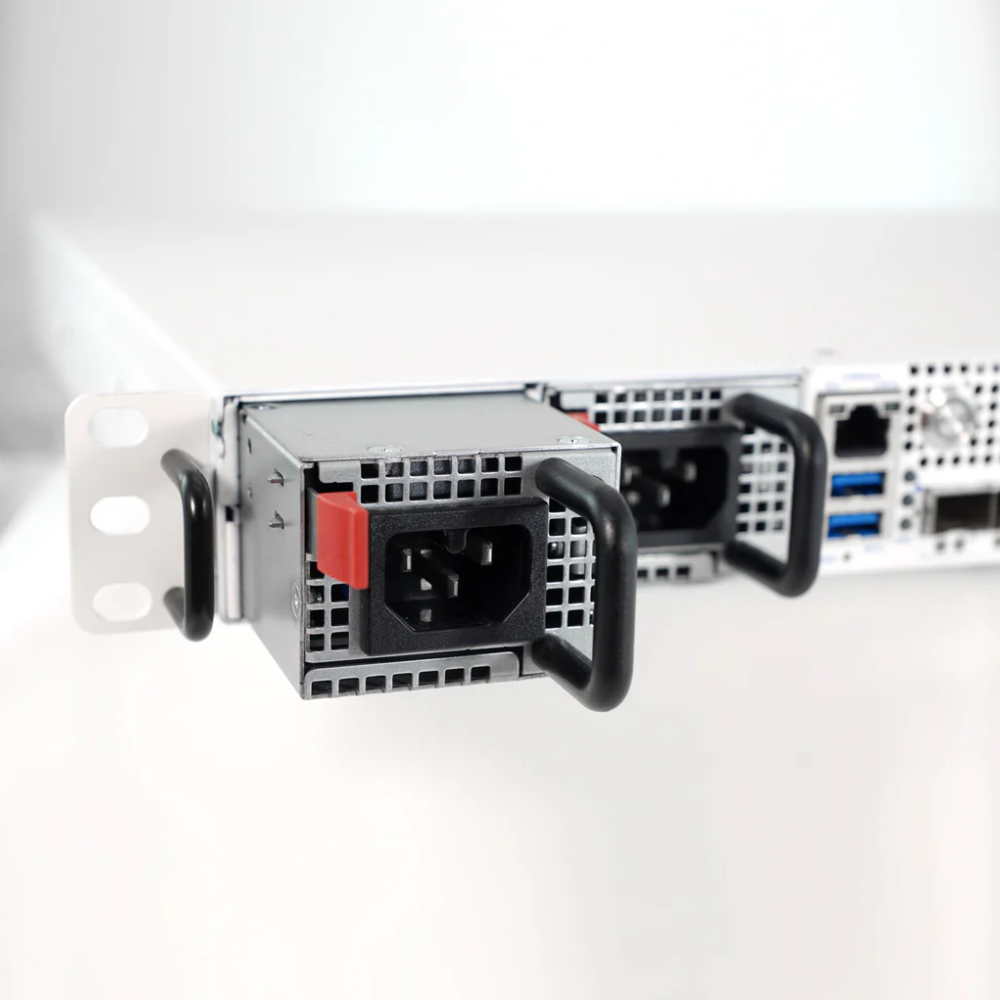

• Power: Dual hot-swappable PSU bays. 1 x Internal 500W PSU (hot-swappable) included, 110V/240V AC input

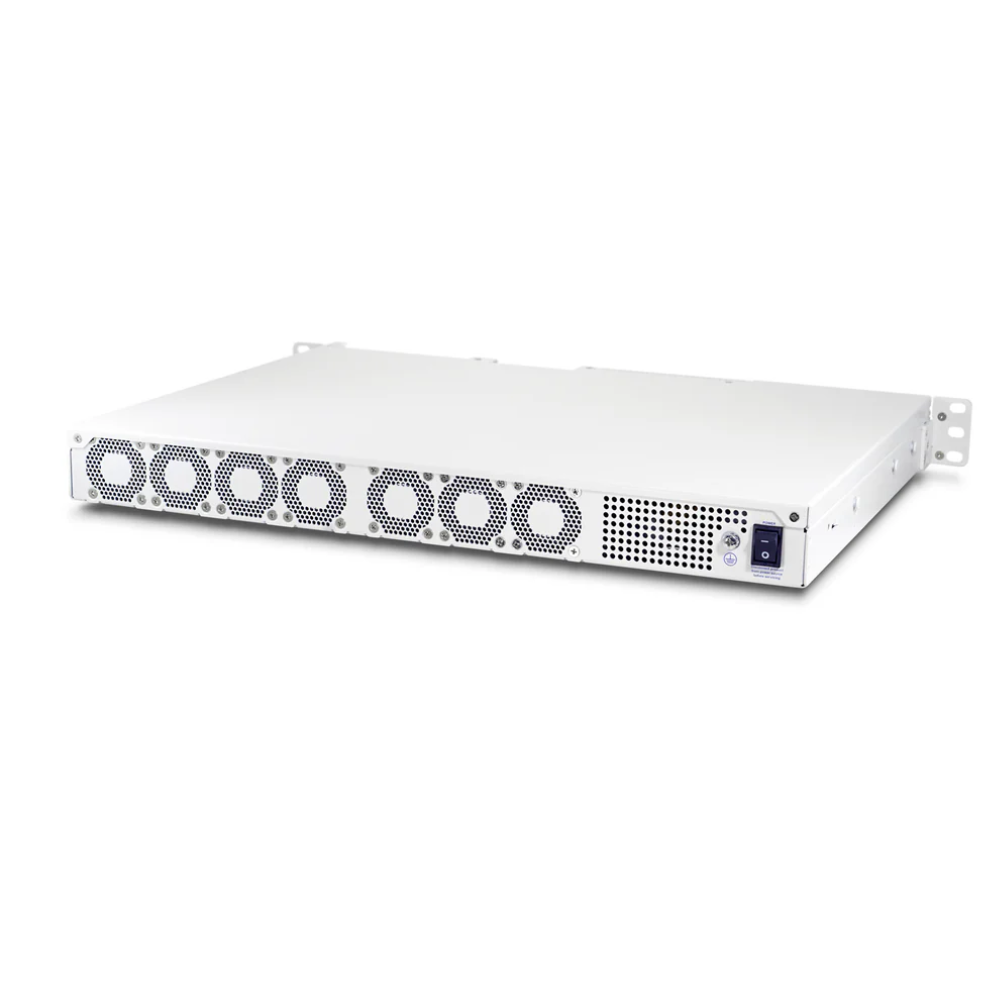

• Cooling: Active – 7x chassis fans at the rear of the enclosure

This compact 1U chassis optimises space efficiency in server rooms and data centres and is ideal for business-critical implementations that require robust high-availability options and dual-power hot-swap capability.

Learn more about this appliance on the official Netgate website.

Software

pfSense Plus software offers the performance, flexibility, reliability and business assurance you expect from leading secure networking applications:

• Flexible options for third-party applications
• Proven management mechanisms
• Proven reliability
• Full support for business assurance

At a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect solution. Popular use cases for pfSense Plus include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP server, IDS/IPS, failover WAN and many more.

We are happy to provide you with a customised quote for larger orders! Please send your enquiry to sales@qwertiko.de.
