Netgate 6100 MAX pfSense+ Security Gateway

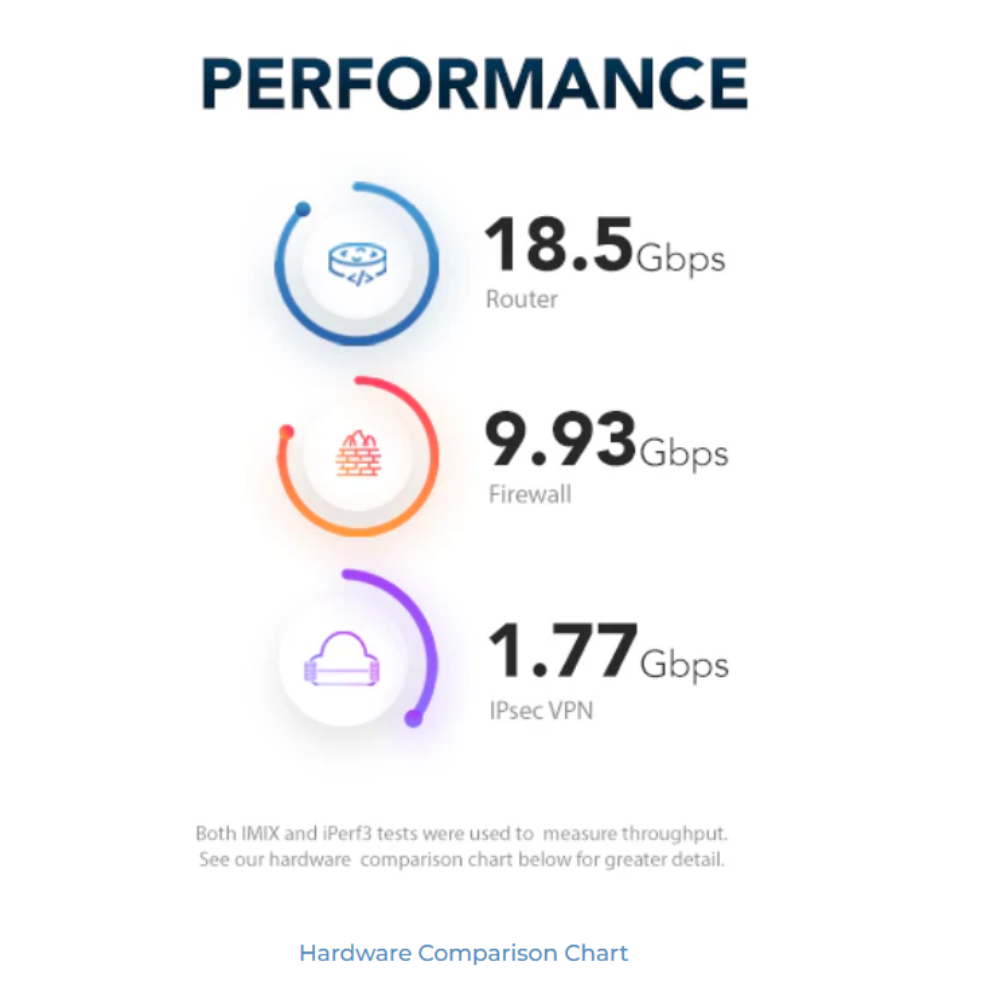

The Netgate® 6100 with pfSense® Plus software is one of the most versatile security gateways in its class. It combines the power of an Intel C3558 quad-core CPU with integrated (QAT) QuickAssist technology & AES-NI and 8 GB of memory for a fast user experience, delivering over 18 Gbps of L3 routing across 8 independent 1 GbE, 2.5 GbE and 10 GbE flexible WAN/LAN ports. The 6100 is capable of running high-throughput firewall, routing and VPN applications. Despite its high performance, the 6100 operates completely silently with a passive cooling system and is ideal for use in homes, small and medium-sized businesses or edge environments.

This appliance is an ideal edge gateway solution for businesses that require versatile network connectivity with flexible WAN/LAN connections from 1 to 10 Gbit/s and 8 GB DDR4 memory for exceptional throughput performance.

Technical data

• CPU: Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
• CPU Cores: Quad Core

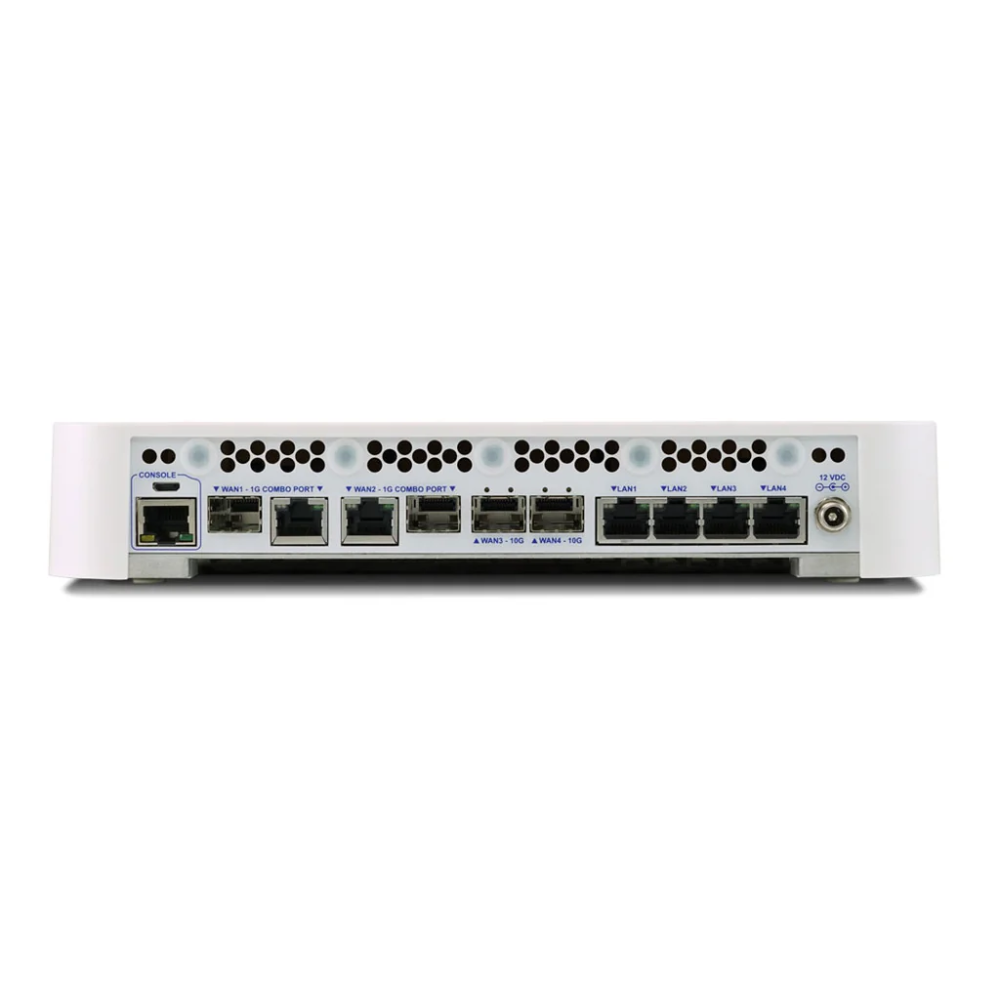

• Network Interfaces: 2 x 10 Gbps SFP+ cage (WAN)
  2 x Auto media detect 1 Gbps (RJ45 copper / SFP fiber) “Combo Port” (WAN)
  4 x 2.5 Gbps RJ-45 “direct” (unswitched) ethernet (LAN)
• Storage: 128 GB NVMe M.2 SSD
• Memory: 8 GB DDR4 w/o ECC, single channel
• Expansion: 2 x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)
  1 x Mini-PCie Slot (Wi-Fi Only)
• Misc: 1 x auto-detect console port: “Cisco pinout” RJ45 + micro-USB (micro-USB cable included with each system)

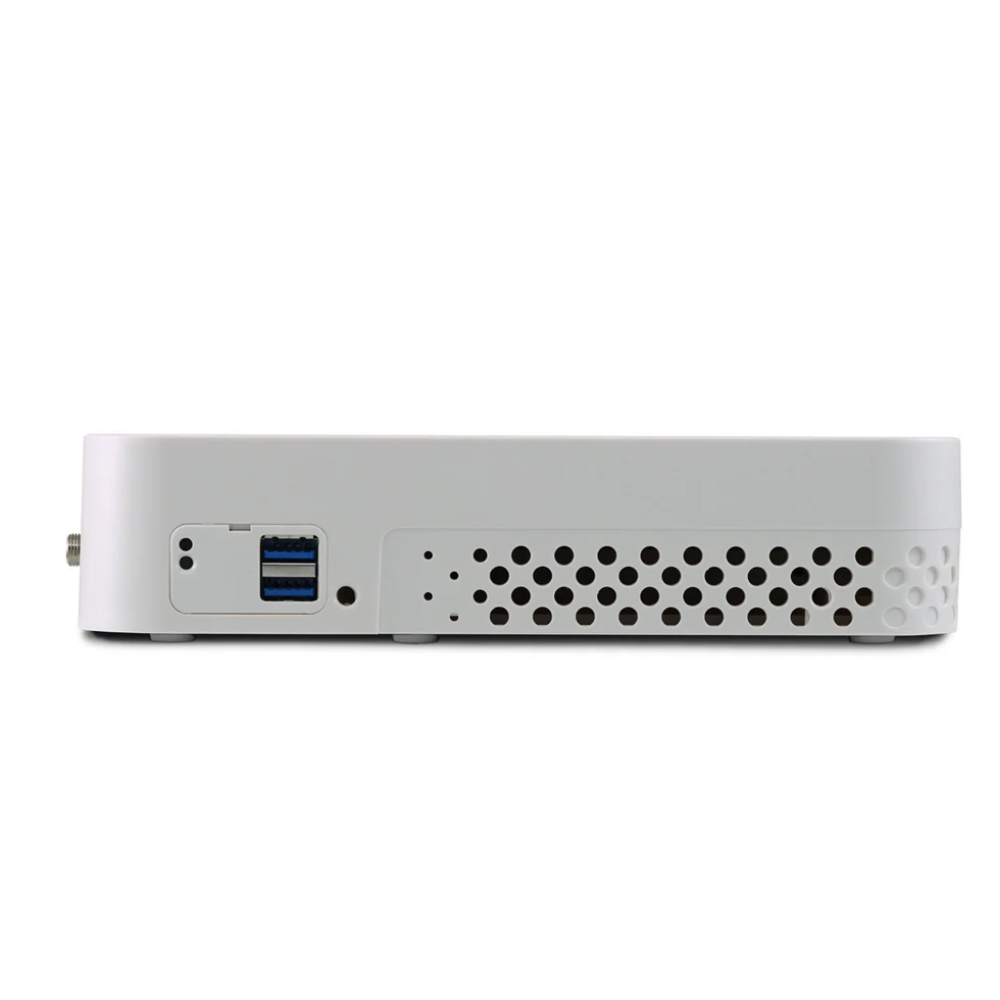

• USB: 2 x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front
• LED: 3 x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
• Enclosure: Desktop – Aluminum, plastic, and steel enclosure. 254 x 200 x 47.63 mm (10 x 7.88 x 1.88 inches)
• Cooling: Passive
• Power: External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.
  Specifications:
  AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included
  US Power Cord: NEMA 1-15-P to IEC320-C7
  UK Power Cord: BS 1363 to IEC320-C7
  EU Power Cord: CEE7/16 to IEC320-C7
  ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
• Operating Temperature: 0°C (32°F) to 40°C (104°F) – ambient
• Certifications: FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA
• Mounting: Optional wall or rack mount kit

Learn more about this appliance on the official Netgate website.

Software

pfSense Plus software offers the performance, flexibility, reliability and business assurance you expect from leading secure networking applications:

• Flexible options for third-party applications
• Proven management mechanisms
• Proven reliability
• Full support for business assurance

At a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect solution. Popular use cases for pfSense Plus include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP server, IDS/IPS, failover WAN and many more.

We are happy to provide you with a customised quote for larger orders! Please send your enquiry to sales@qwertiko.de.
